MEASURING AND TESTING EQUIPMENT

LOCATOR, PIPE & CABLE


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

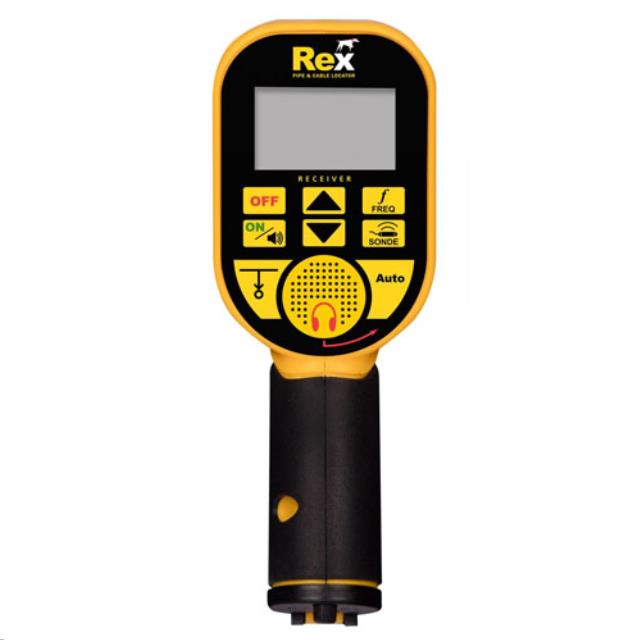

Manufacturer: SCHONSTEDT

Model: REX-LITE 33

4 Hour: $82.50

Daily: $115.50

Weekly: $357.50

Quantity: for a period of
4 hour(s) day(s) week(s)

REX-LITE L32 Features:
Ultralight Design: Receiver + Transmitter = Under 5lbs
Compact & Portable: Receiver retracts for easy carrying
Dual-Frequency Versatility: 512 Hz + (33 kHz), plus 50/60 Hz passive and 512 Hz sonde detection
Rex LITE comes with 33 kHz (commonly used for tracing cables), plus 512 Hz
REX-LITE L3 Receiver Specifications:
Operating Frequency: Active: 33 kHz and 512 Hz (33kHz model); Passive: 50 or 60 Hz; Sonde: 512 Hz
Battery: One 9V Battery
Battery Life: 12 Hours (intermittent usage)
Weight (incl. battery): 2.8 lbs (1.25 kg)
Operating Temperature: -4 F to 140 F (-20 C to 70 C)
Overall Dimensions: Closed: 17.5 (44 cm); Extended: 27.7 (70 cm)
Max. Depth Capability: Approximately 19 (5.8 m)
Sonde mode - approximately 5 - 15 (1.5 m to 4.2 m)
Water and Dust Resistance: Rated IP54
REX-LITE L3 Transmitter Specifications:
Operating Frequency: 33 kHz and 512 Hz (33 kHz model)
Operating Modes: Conductive, all frequencies; Inductive, 33 kHz; Inductive Clamp (optional), 33 kHz
Max. Output Power: Conductive mode, 33 kHz and 512 Hz - 1 W Max @ 1000 load
Battery Type: 10 AA Alkaline (1.5 V nominal)
Battery Life: 8 Hours (intermittent usage)
Dimensions: 10 W x 10.25 D x 1.75 H (25.4 cm x 26 cm x 4.5 cm)
Weight: 1.9 lbs (0.9 kg)
Operating Temp.: -4 F to 140 F (-20 C to 70 C)
Water and Dust Resistance: Rated IP54
